1.Compliant standards

GB/T14048.2，IEC60947-2

2.Compliant certification

CCC、CE

3. Major function

Overload protection, short circuit protection, positive isolation

4. Technical parameters

Rated current(In):63A、80A、100A、125A;

Rated operation voltage Ue: 1P(48-250V),2P(48V-500V),3P(48V-750),4P(48V-1000V);

Rated insulation voltage Ui: 500V;

Thermal magnetic release:c、D;

Number of poles:1P、2P、3P、4P.

Mechanical life: 20000 cycles;

Electrical life: 1000 cycles;

Rated short-circuit breaking capacity(Icn): 6kA (1P DC250V、2P DC500V、4P DC1000V);

Short-circuit breaking capacity (lcs): 6kA (1P DC250V、2P DC500V、4P DC1000V);

Rated impulse withstand voltage (Uimp): 4kV.

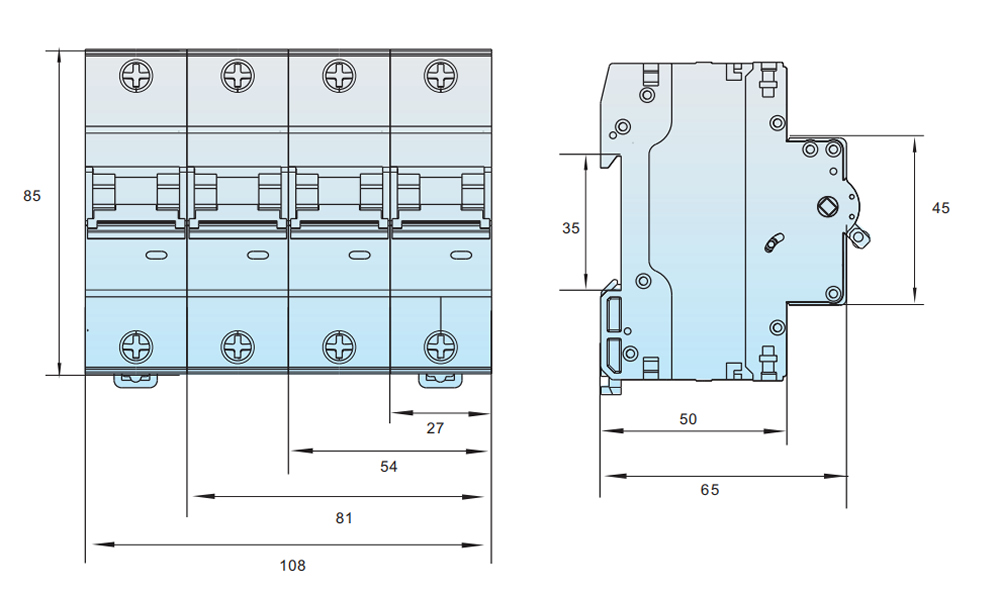

5.Dimensions and installation sizes
