1.Compliant standards

GB/T10963.1、IEC60898-1

2.Compliant certification

CCC、CE

3. Major function

Overload protection, short circuit protection, isolation, residual current operation

4. Technical parameters

Rated current(In):6A、10A、16A、20A、25A、32A、40A、50A、63A、80A、100A;

Rated operation voltage Ue: 230V~(2P); 400V~(4P);

Rated insulation voltage Ui: 500V;

Frequency:50/60Hz;

Thermal magnetic release:C

Number of poles: 2P、4P

Mechanical life: 20000 cycles;

Electrical life: 6000 cycles;

Rated short-circuit breaking capacity(lcn): 6kA、 10kA;

Short-circuit breaking capacity (lcs): 6kA、 10kA.

Rated impulse withstand voltage (Uimp): 4kV.

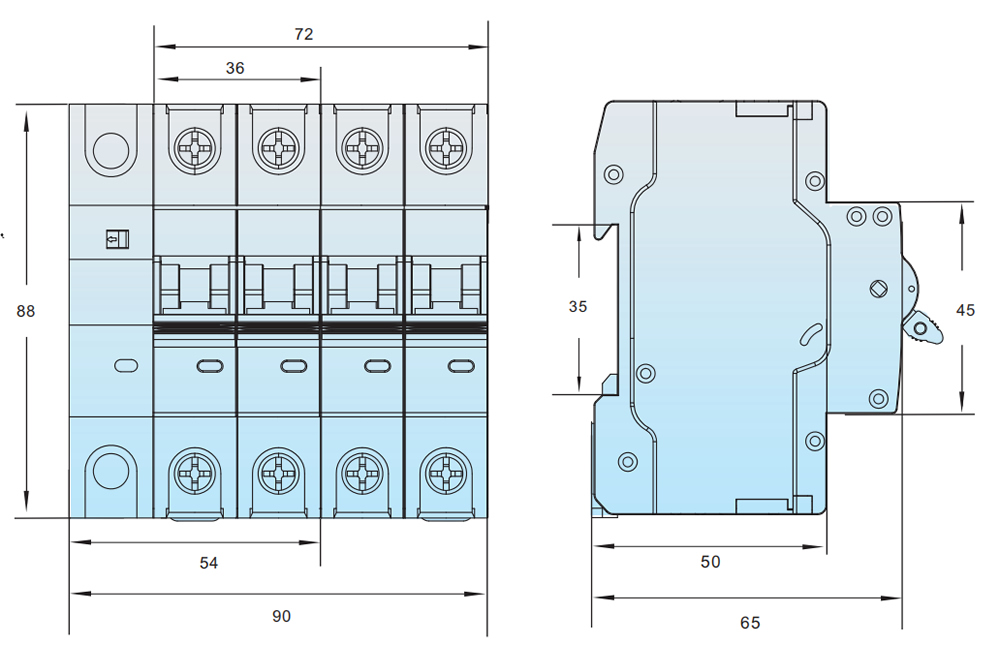

5.Dimensions and installation sizes
