1.Compliant standards

GB/T16916.1、IEC61008-1

2.Compliant certification

CE

3.Major function

Overload protection, short circuit protection, isolation, residual current operation

4.Technical parameters

Rated current(In):6A、10A、16A、20A、25A、32A、40A、50A、63A。

Rated operation voltage Ue: 230V~(1P+N)。

Rated insulation voltage Ui: 500V;

Frequency:50/60Hz;

Number of poles: 1P+N、3P+N.

Mechanical life: 3000 cycles;

Electrical life: 2000 cycles;

Rated short-circuit breaking capacity(lcn): 6kA;

Short-circuit breaking capacity (lcs):6kA;

Rated impulse withstand voltage (Uimp): 4kV

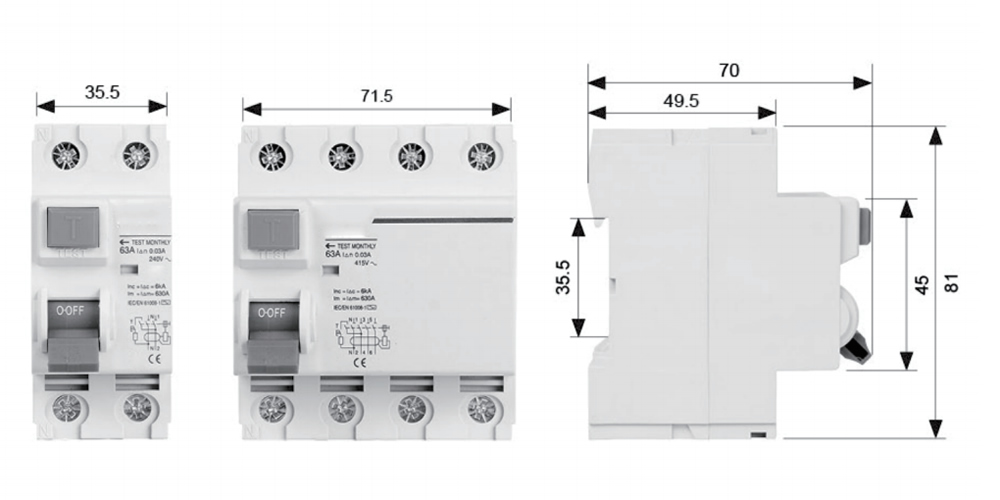

5.Dimensions and installation sizes
