1.Compliant standards

GB/T16917.1,1EC61009-1

2. Compliant certification

CCC、CE

3. Major function

Overload protection, short circuit protection, isolation, residual current operation

4. Technical parameters

Rated current(In):63A、80A、100A、125A.

Rated operation voltage Ue: 230V~(1P+N/2P);400V~(3P、3P+N、4P)。

Rated insulation voltage Ui: 500V.

Frequency: 50/60Hz.

Thermal magnetic release: C、 D.

Number of poles: 1P+N、2P、3P、3P+N、4P.

Mechanical life: 20000 cycles;

Electrical life: 4000 cycles;

Rated short-circuit breaking capacity(lcn): 6kA、 10kA.

Short-circuit breaking capacity (lcs): 6kA、 10kA.

Rated impulse withstand voltage (Uimp): 4kV.

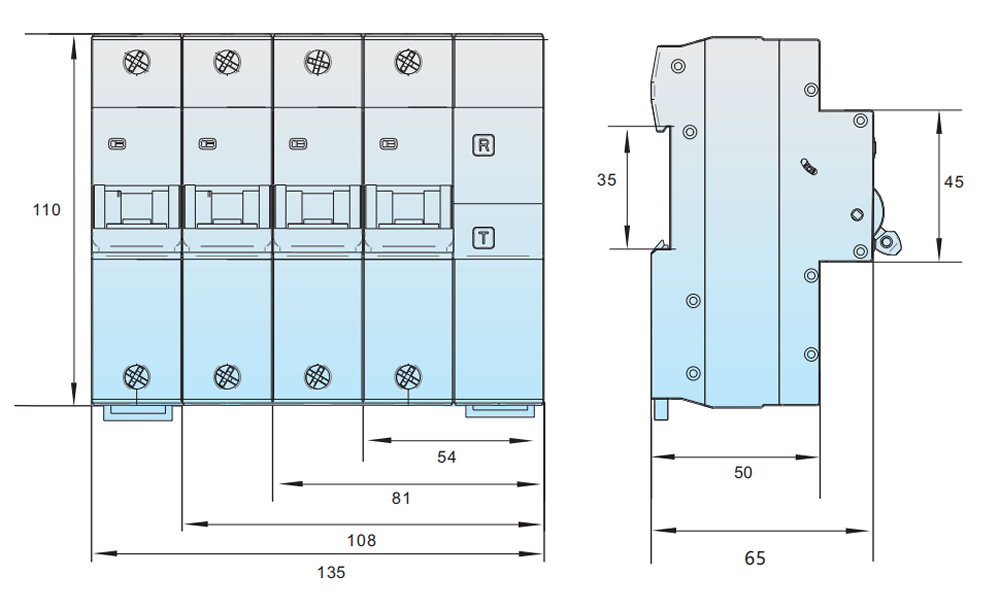

5.Dimensions and installation sizes
