1.Compliant standards

GB/T16917.1，IEC61009-1

2.Compliant certification

CE

3.Major function

Overload protection, short circuit protection, isolation, residual current operation

4.Technical parameters

Rated current(In):6A、10A、16A、20A、25A、32A、40A、50A、63A.

Rated operation voltage Ue: 230V~(1P+N).

Rated insulation voltage Ui: 500V.

Frequency: 50/60Hz.

Thermal magnetic release:c、D.

Number of poles: 1P+N(N-pole disconnectable).

Mechanical life: 10000 cycles;

Electrical life : 4000 cycles;

Rated short-circuit breaking capacity(lcn): 4.5kA、6kA.

Short-circuit breaking capacity (lcs): 4.5kA、 6kA.

Rated impulse withstand voltage (Uimp): 4kV.

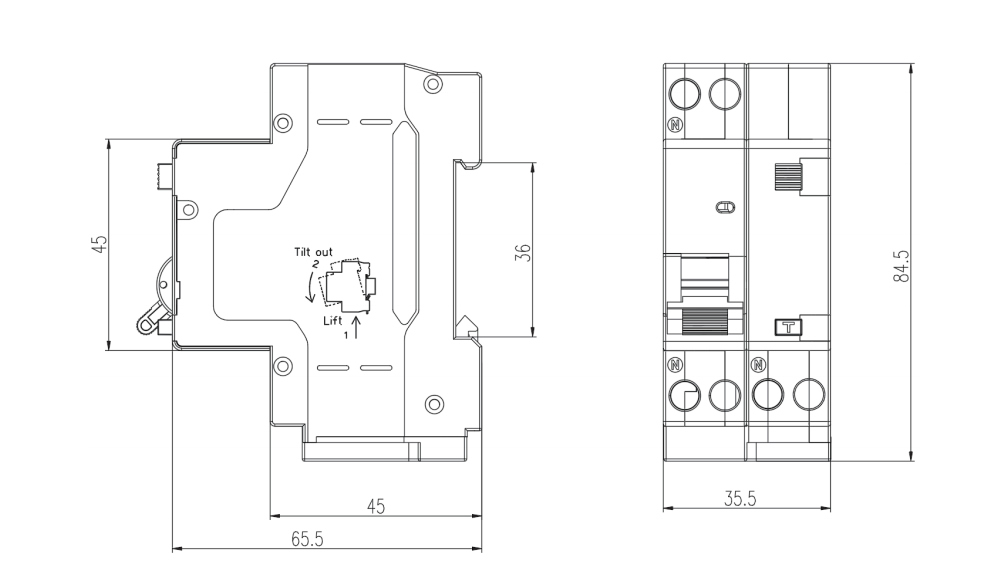

5.Dimensions and installation sizes
