1.Compliant standards

GB/T14048.2，IEC60947-2

2.Compliant certification

CCCC、CEE

3. Major function

Overload protection, short circuit protection, positive isolation

4.Technical parameters

Rated current(In):6A、10A、16A、20A、32A、40A、50A、63A;

Rated operation voltage Ue:1P(48-250V),2P(48V-500V),3P(48V-750),4P(48V-1000V)

Rated insulation voltage Ui: 690V;

Thermal magnetic release:C、B;

Number of poles:1P、2P、3P、4P:

Mechanical life: 20000 cycles;

Electrical life: 1500 cycles;

Rated short-circuit breaking capacity(lcn): 6kA (1P DC250V、2P DC500V、4P DC1000V);

Short-circuit breaking capacity (lcs): 6kA (1P DC250V、2P DC500V、4P DC1000V);

Rated impulse withstand voltage (Uimp): 4kV.

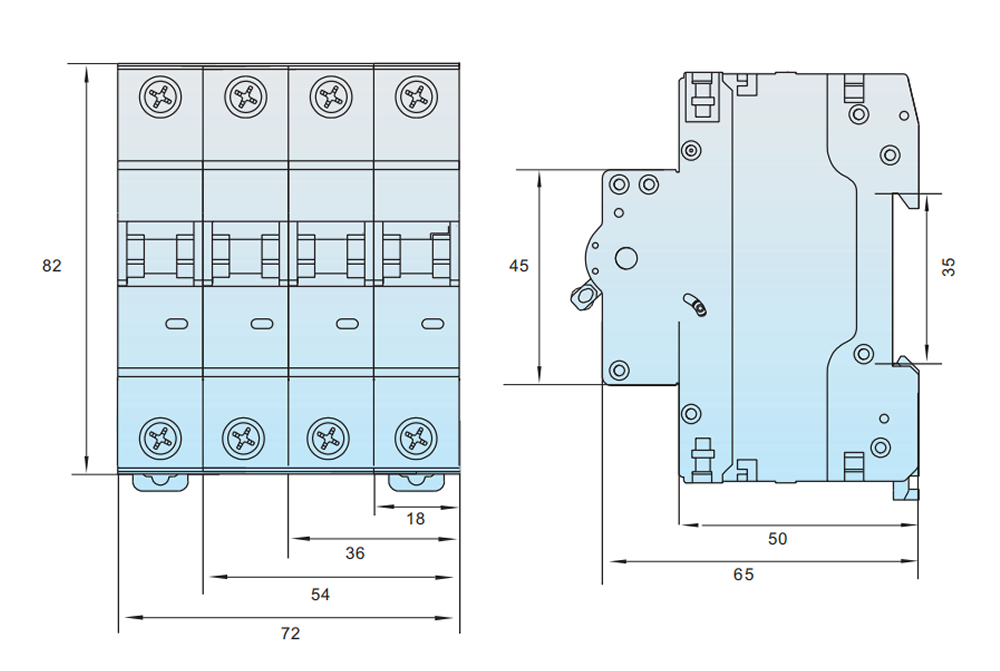

5.Dimensions and installation sizes
