1.Compliant standards

GB/T14048.3、IEC60947-3

2.Compliant certification

CCC、CE

3. Maior function

lsolation function

4.Parameters and performance

Rated currentle:10A、16A、20A、25A、32A、63A、80A、100A、125A;

Rated operation voltage Ue: 230V/400V~(1P);AC400V~(2P、3P、4P);

Rated insulation voltage Ui: 500V;

Frequency: 50/60Hz;

Number of poles:1P、2P、3P、4P:

Mechanical life: 8500 cycles;

Electrical life : 1500 cycles;

Rated short time withstand current lcw: 1500A, power-on time of 1s;

Rated short-circuit making capacity lcm: 1500A, power-on time of 1s;

Rated impulse withstand voltage Uimp: 4kV.

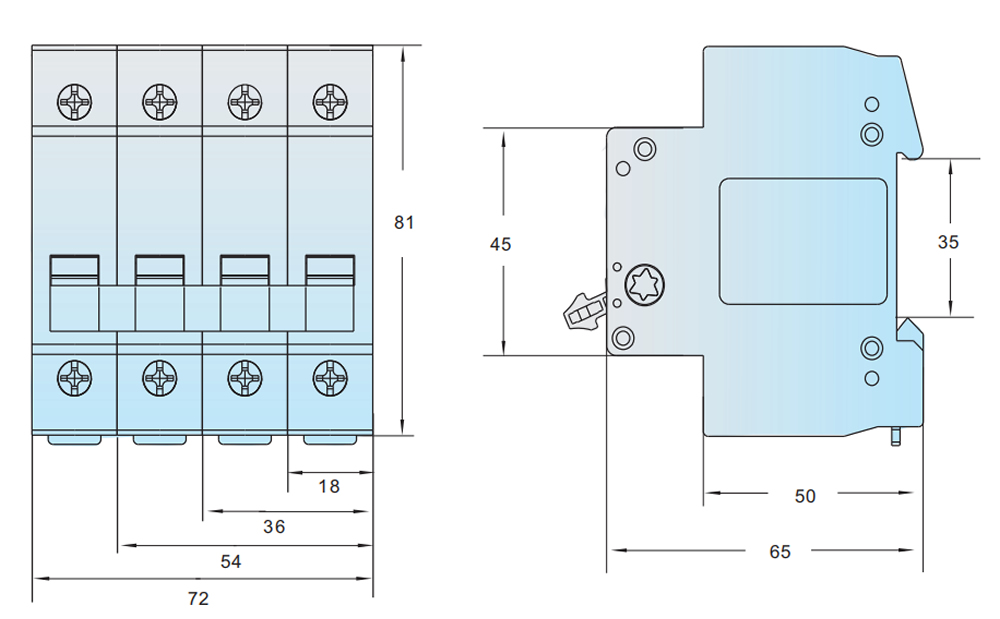

5.Dimensions and installation sizes
