1.Compliant standards

GB/T16917.1、IEC61009-1

2.Compliant certification

CCC、CE

3.Major function

Overload protection, short circuit protection, isolation, residual current operation

4.Technical parameters

Rated current(In):6A、10A、16A、20A、25A、32A、40A、50A、63A.

Rated operation voltage Ue: 230V~(1P+N)。

Rated insulation voltage Ui: 500V;

Frequency: 50/60Hz;

Thermal magnetic release:C、D;

Number of poles: 1P+N.

Mechanical life: 10000 cycles;

Electrical life: 4000 cycles;

Rated short-circuit breaking capacity(lcn): 4kA、6kA;

Short-circuit breaking capacity (lcs):4kA、6kA;

Rated impulse withstand voltage (Uimp): 4kV

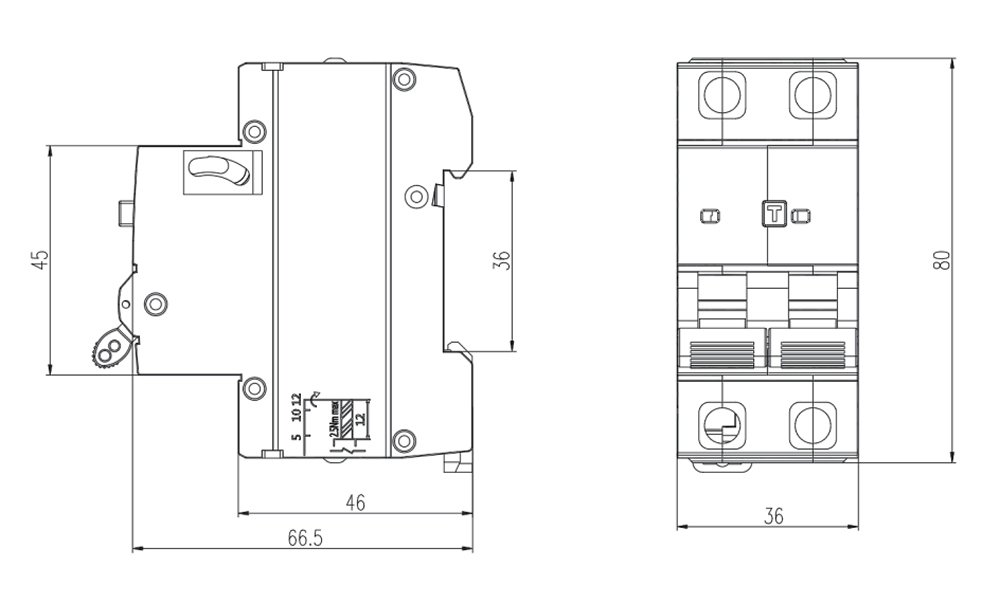

5.Dimensions and installation sizes
