1. Compliant standards

GB/T16917.1、IEC61009-1

2. Compliant certification

CCC、CE

3. Maior function

Overload protection, short circuit protection, isolation, residual current operation

4. Technical parameters

Rated current(In): 1A、2A、3A、4A、5A、6A、10A、16A、20A、25A、32A、40A、50A、63A.

Rated operation voltage Ue: 230V~(1P+N);

Rated insulation voltage Ui: 500V;

Frequency:50/60Hz;

Thermal magnetic release:C、D;

Number of poles: 1P+N:

Mechanical life: 10000 cycles;

Electrical life: 4000 cycles;

Rated short-circuit breaking capacity(lcn): 3kA、 4.5kA;

Short-circuit breaking capacity (lcs): 3kA、 4.5kA;

Rated impulse withstand voltage (Uimp): 4kV

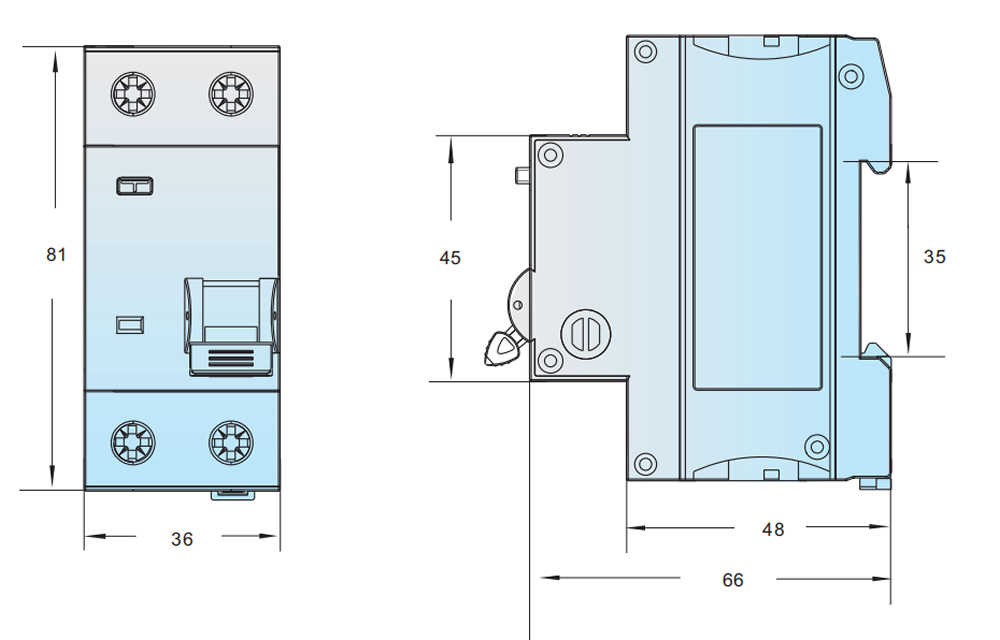

5. Dimensions and installation sizes
