1.Compliant standards

GB/T 10963.1，IEC 60898-1

GB/T 16917.1，IEC 61009-1

2.Compliant certification

CECCC、

3. Major function

Remote APP、 Overload protection, short circuit protection, residual current operation.Undervoltage Protection 、Over-temperature protection 、 Monitoring alarm

4. Technical parameters

Rated current(In):10A,16A,20A,25A,32A,40A,50A,63A, 80A,100A.

Rated operation voltage Ue: 230V~(1P、2P); 400V~(3P、4P)。

Rated insulation voltage Ui: 500V.

Frequency: 50/60Hz.

Thermal magnetic release:C、D.

Number of poles:1P、2P、3P、4P.

Mechanical life: 20000 cycles;

Electrical life: 6000 cycles;

Rated short-circuit breaking capacity(lcn): 6kA、10kA.

Short-circuit breaking capacity (lcs): 6kA、 10kA.

Rated impulse withstand voltage (Uimp): 4kV.

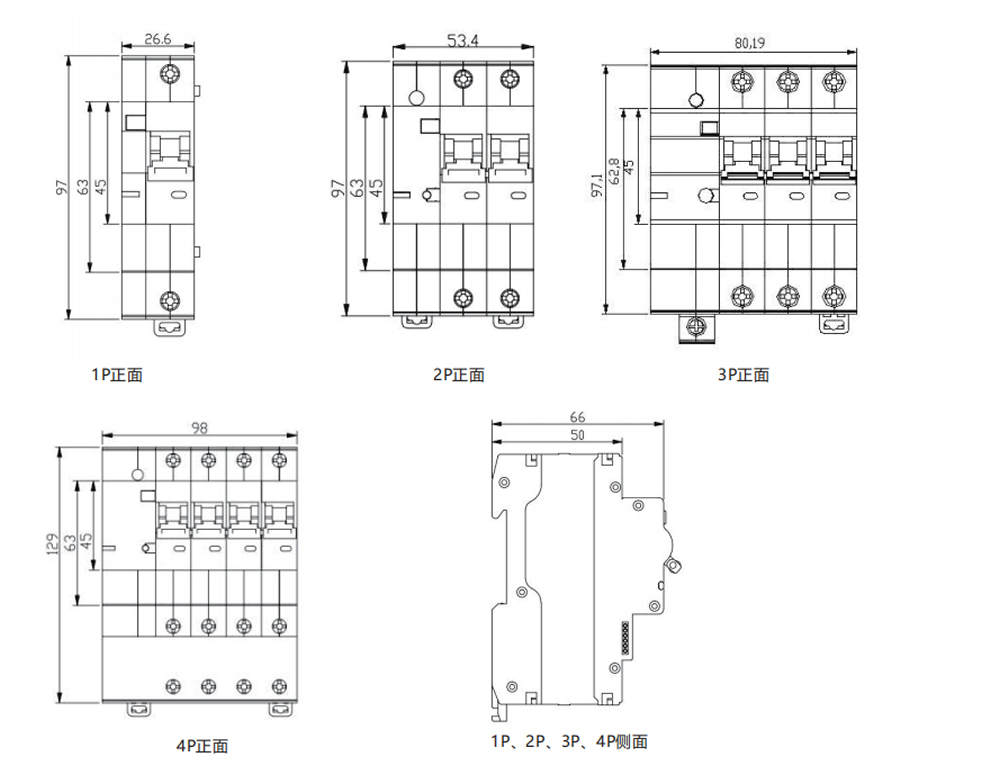

5.Dimensions and installation sizes
