1.Compliant standards

GB/T 10963.1，IEC 60898-1

2.Compliant certification

CCC、CE

3. Major function

Overload protection, short circuit protection, positive isolation

4.Technical parameters

Rated current(In):6A、10A、16A、20A、25A、32A、40A;

Rated operation voltage Ue: 230V~;

Rated insulation voltage Ui: 500V ;

Frequency:50/60Hz;

Thermal magnetic release:C、D;

Number of poles: 1P+N;

Mechanical life: 10000 cycles;

Electrical life: 4000 cycles;

Rated short-circuit breaking capacity(lcn): 4.5kA、 6kA;

Short-circuit breaking capacity (lcs): 4.5KA、6kA ;

Rated impulse withstand voltage (Uimp): 4kV.

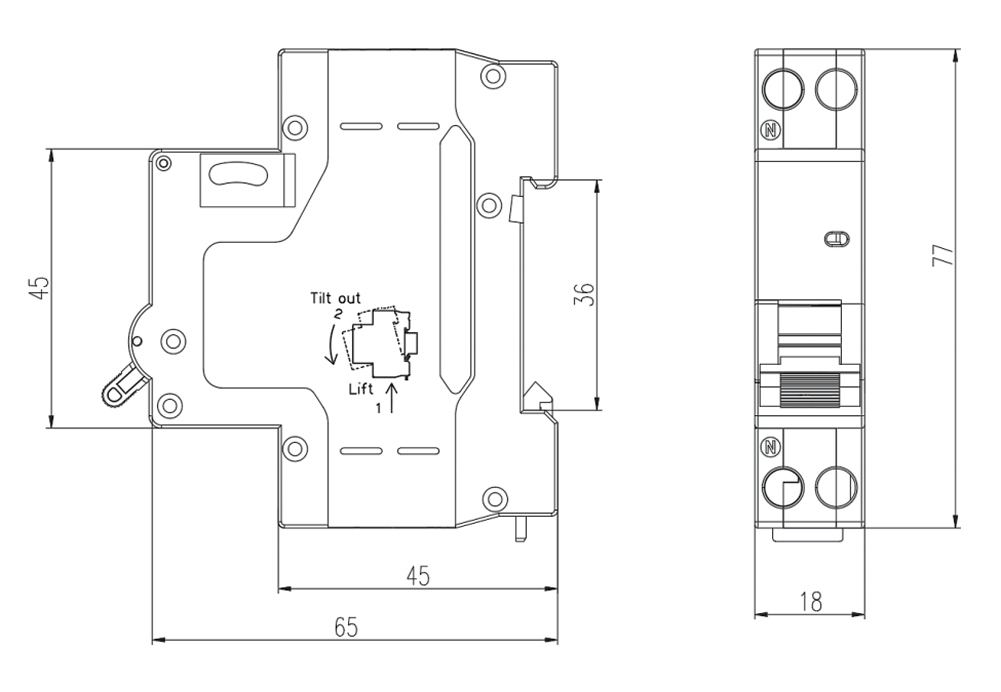

5.Dimensions and installation sizes
