1.Compliant standards

GB/T10963.1，IEC60898-1

GB/T14048.2,IEC60947-2

2.Compliant certification

CCC、CE

3. Major function

Overload protection, short circuit protection, positive isolation

4. Technical parameters

Rated current(In):63A、80A、100A、125A.

Rated operation voltage Ue:230V/400V~(1P),400V~(2P、3P、4P);

Rated insulation voltage Ui: 500V;

Frequency:50/60Hz;

Thermal magnetic release:C、D;

Number of poles:1P、2P、3P、4P

Mechanical life: 20000 cycles;

Electrical life: 6000 cycles;

Rated short-circuit breaking capacity(lcn): 6kA、 10kA;

Short-circuit breaking capacity (lcs): 6kA、 10kA;

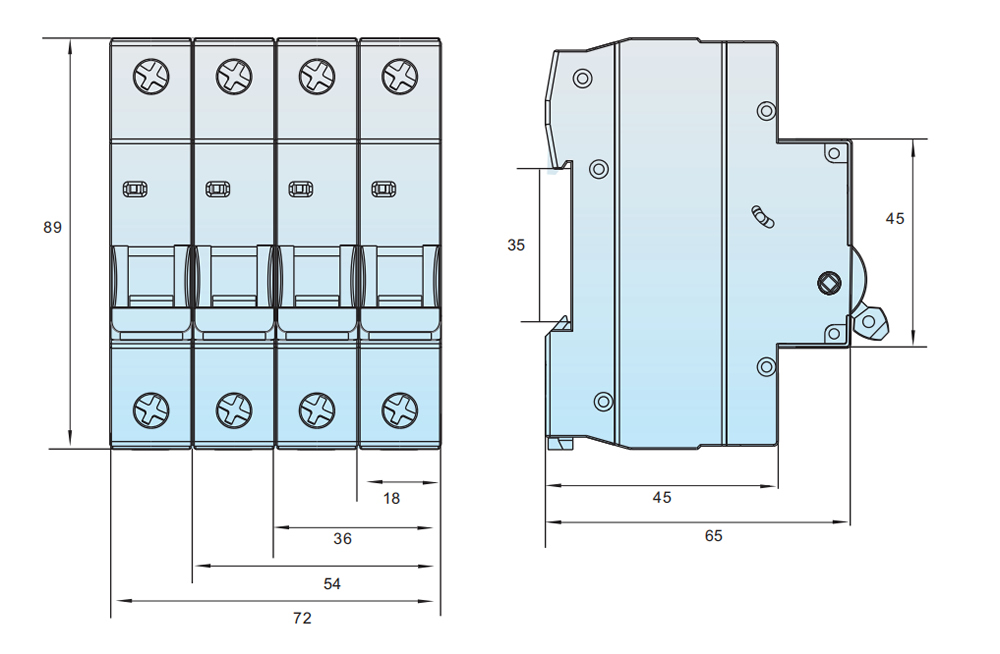

5.Dimensions and installation sizes
