1.Compliant standards

GB/T 10963.1,IEC 60898-1

2.Compliant certification

CCC、

3. Major function

Overload protection, short circuit protection, positive isolation

4. Technical parameters

Rated current(In): 1A、2A、3A 4A、5A 6A、10A、16A、20A、25A、32A、40A、50A、63A.

Rated operation voltage Ue:230V~(1P~2P、1P+N)，400V~(2P~4P、3P+N).

Rated insulation voltage Ui: 500V.

Frequency:50/60Hz.

Thermal magnetic release:C、D.

Number of poles: 1P、2P、3P、4P.

Mechanical life: 20000 次。

Electrical life: 4000 次.

Rated short-circuit breaking capacity(lcn): 4kA、 6kA.

Short-circuit breaking capacity (lcs): 4kA、6kA.

Rated impulse withstand voltage (Uimp): 4kV.

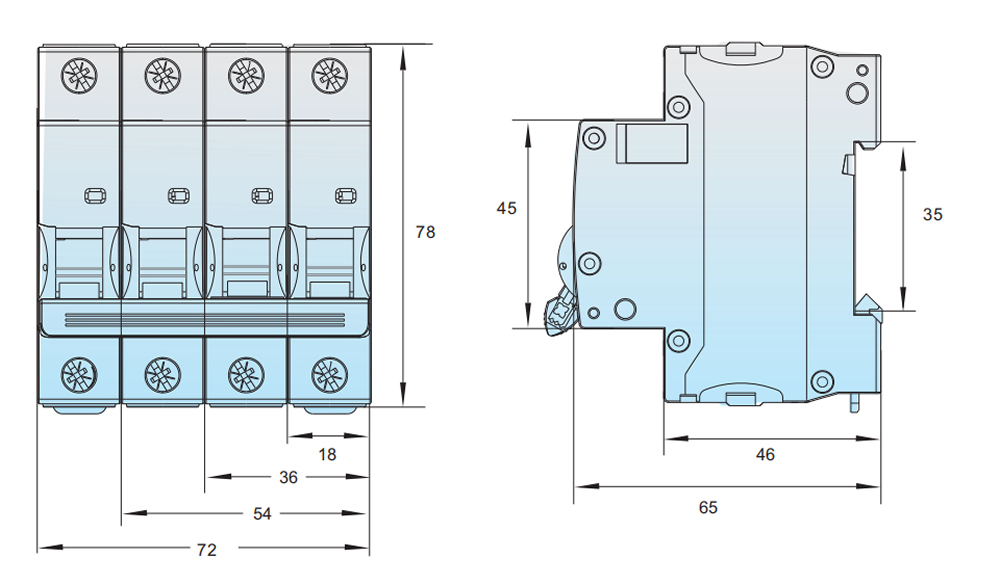

5.Dimensions and installation sizes
