1.Compliant standards

GB/T10963.1，IEC60898-1

GB/T14048.2，IEC60947-2

2.Compliant certification

CE

3.Major function

Overload protection, short circuit protection, positive isolation

4.Technical parameters

Rated current(In):63A、80A、100A、125A;

Rated operation voltageUe:230V/400V~(1P)，400V~(2P、3P、4P);

Rated insulation voltage Ui: 500V;

Frequency:50/60Hz;

Thermal magnetic release:C、D;

Number of poles:1P、2P、3P、4P;

Mechanical life: 20000 cycles;

Electrical life: 6000 cycles;

Rated short-circuit breaking capacity(lcn): 6kA、 10kA;

Short-circuit breaking capacity(lcs): 6kA、10kA;

Rated impulse withstand voltage (Uimp): 4kV.

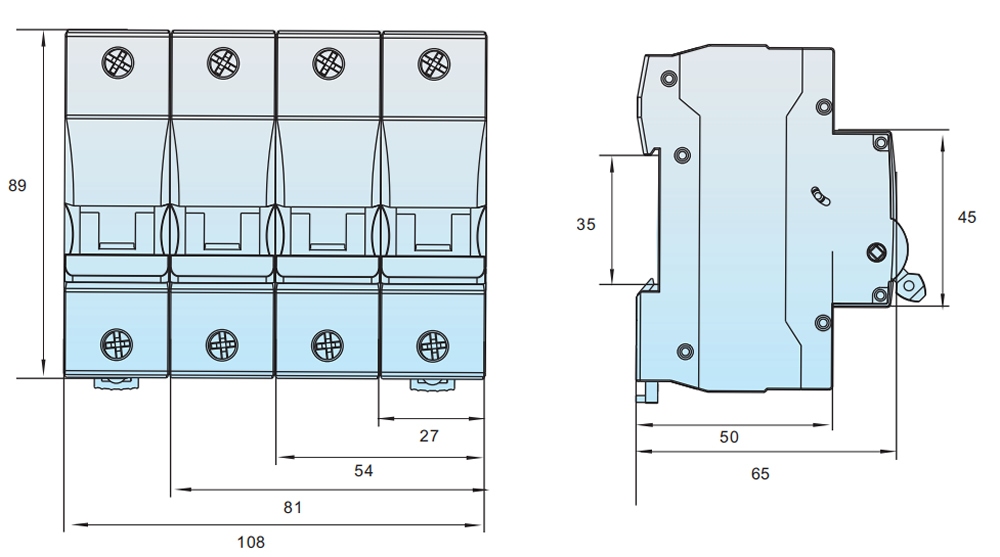

5.Dimensions and installation sizes
