1.Compliant standards

GB/T16917.1,IEC61009-1

2.Compliant certification

CCC、CE

3. Major function

Overload protection, short circuit protection, isolation, residual current operation

4.Technical parameters

Rated current(In):6A、10A、16A、20A、32A、40A、50A、63A;

Rated operation voltage Ue:230V~(1PN、2P);400V~(3P、3PN、4P);

Rated insulation voltage Ui: 500V;

Frequency:50/60Hz;

Thermal magnetic release:C、D;Number of poles:1P+N、2P、3P、3P+N、4P;Mechanical life: 20000 cycles;

Electrical life: 4000 cycles;

Rated short-circuit breaking capacity(lcn): 6kA、 10kA.

Short-circuit breaking capacity (lcs): 6kA、 10kA.

Rated impulse withstand voltage (Uimp): 4kV .

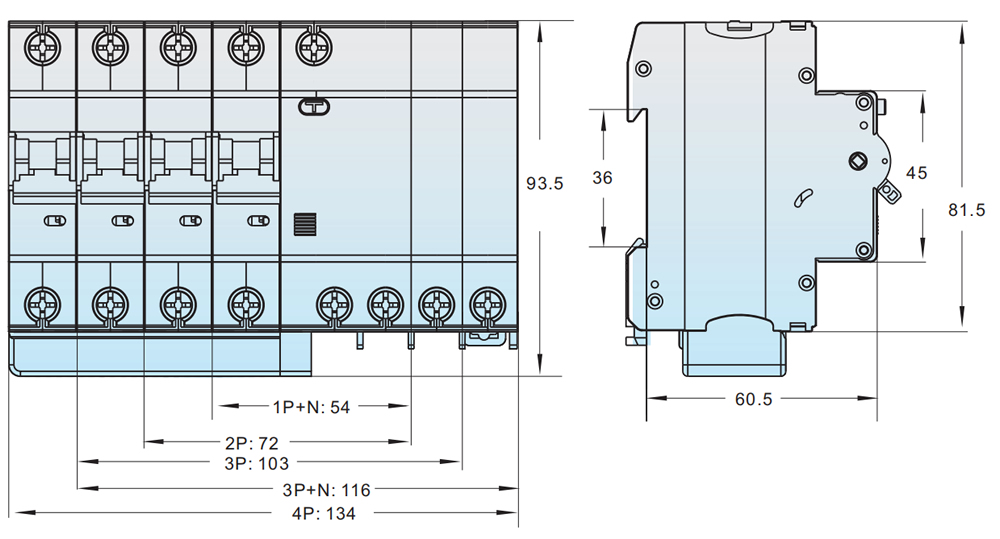

5.Dimensions and installation sizes
