1. Compliant standards

GB/T16917.1，IEC61009-1

2.Compliant certification
CCC,CE

3. Major function

Overload protection, short circuit protection, isolation, residual current operation

4. Technical parameters

Rated current(In):6A、10A、16A、20A、25A、32A、40A、50A、63A、80A.

Rated operation voltage Ue: 230V~(1P+N).

Rated insulation voltage Ui: 500V.

Frequency:50/60Hz.

Thermal magnetic release:C、D.

Number of poles:1P+N(N-pole disconnectable)。Mechanical life: 20000 cycles;

Electrical life :4000 cycles;

Rated short-circuit breaking capacity(lcn): 6kA、 10kA.

Short-circuit breaking capacity (lcs): 6kA、 10kA.

Rated impulse withstand voltage (Uimp): 4kV.

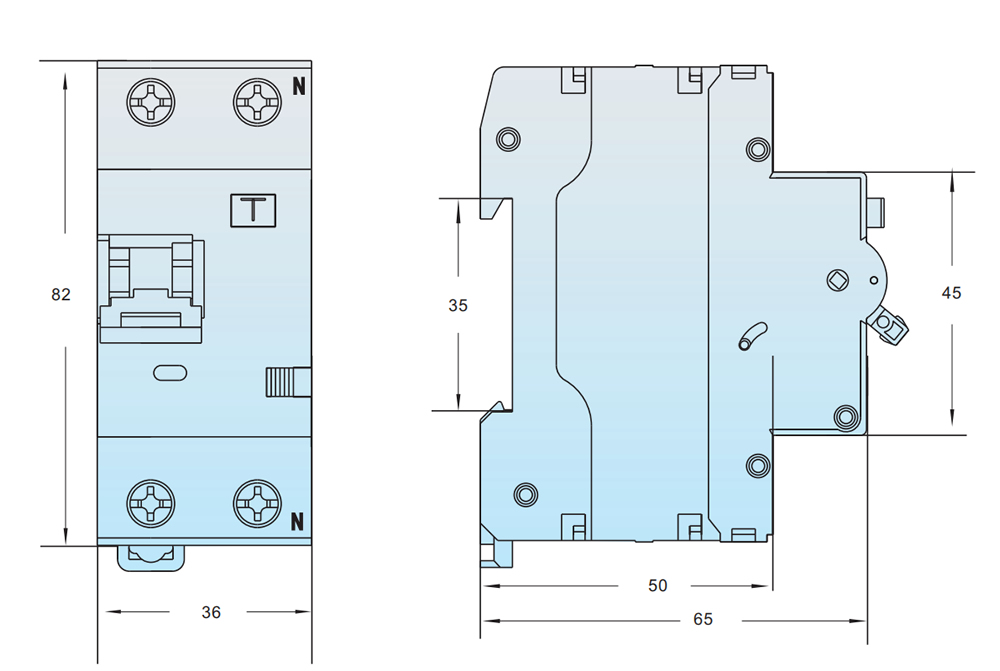

5.Dimensions and installation sizes
