1. Compliant standards

GB/T16917.1,IEC61009-1

2.Compliant certification

CCC、CE

3. Major function

Overload protection, short circuit protection, isolation, residual current operation

4. Technical parameters

Rated current(In):10A、16A、20A、25A、32A、40A、50A、63A、80A、100A;

Rated operation voltage Ue:230V~(1P+N、2P),400V~(3P、3PN、4P);

Rated insulation voltage Ui: 500V;

Frequency:50/60Hz;

Thermal magnetic release:c、D;

Number of poles:1P+N、2P、3P、3PN、4P;

Mechanical life: 20000cycles;

Electrical life: 4000cycles;

Rated short-circuit breaking capacity(lcn): 6kA、 10kA;

Short-circuit breaking capacity (lcs): 6kA、 10kA;

Rated impulse withstand voltage (Uimp): 4kV.

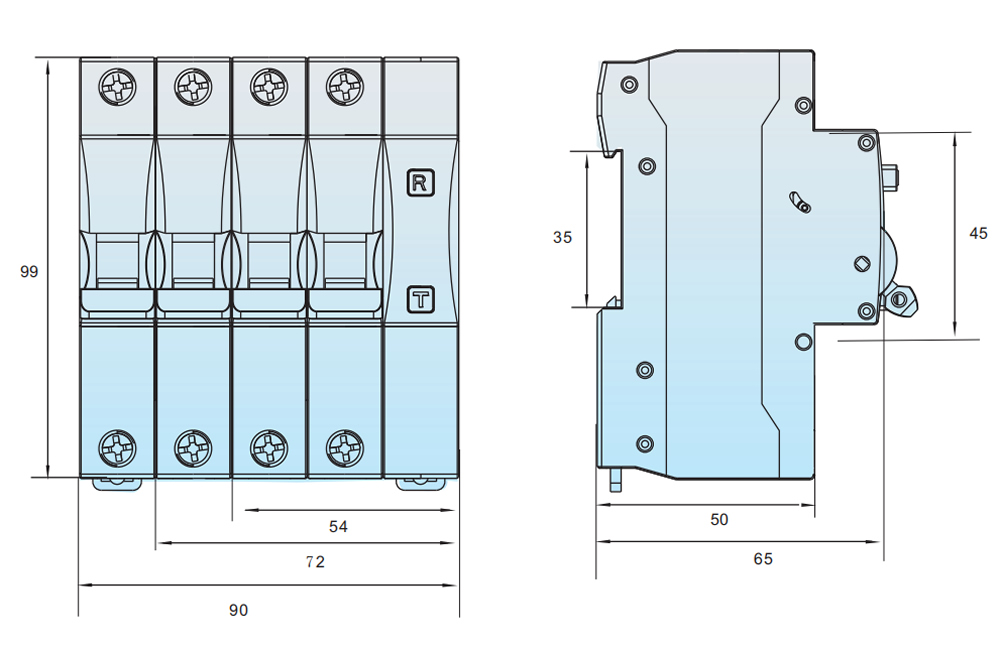

5.Dimensions and installation sizes
