1.Compliant standards

GB/T16917.1，IEC61009-1

2. Compliant certification

CCC、CE

3. Major function

Overload protection, short circuit protection, isolation, residual current operation

4. Technical parameters

Rated current(In):6A、10A、16A、20A、25A、32A、40A、50A、63A.

Rated operation voltage Ue:230V~(1P+N/2P);400V~(3P、3P+N、4P).

Rated insulation voltage Ui: 500V.

Frequency:50/60Hz.

Thermal magnetic release:C、D.

Number of poles: 1P+N、2P、3P、3P+N、4P.

Mechanical life: 20000 cycles;

Electrical life: 4000 cycles;

Rated short-circuit breaking capacity(lcn): 4.5kA、 6kA;

Short-circuit breaking capacity(lcs): 4.5kA、 6kA;

Rated impulse withstand voltage (Uimp): 4kV.

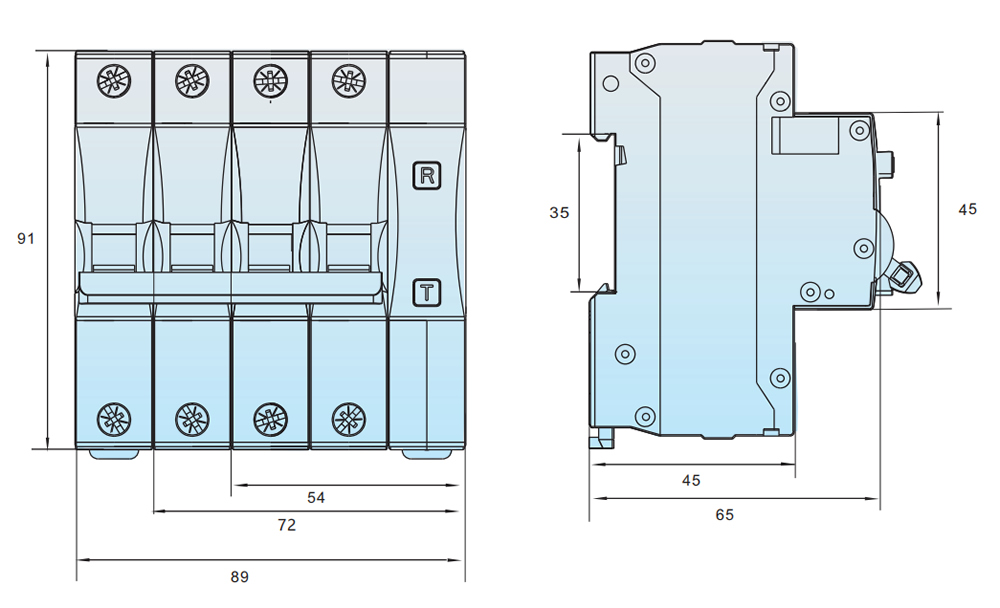

5.Dimensions and installation sizes
